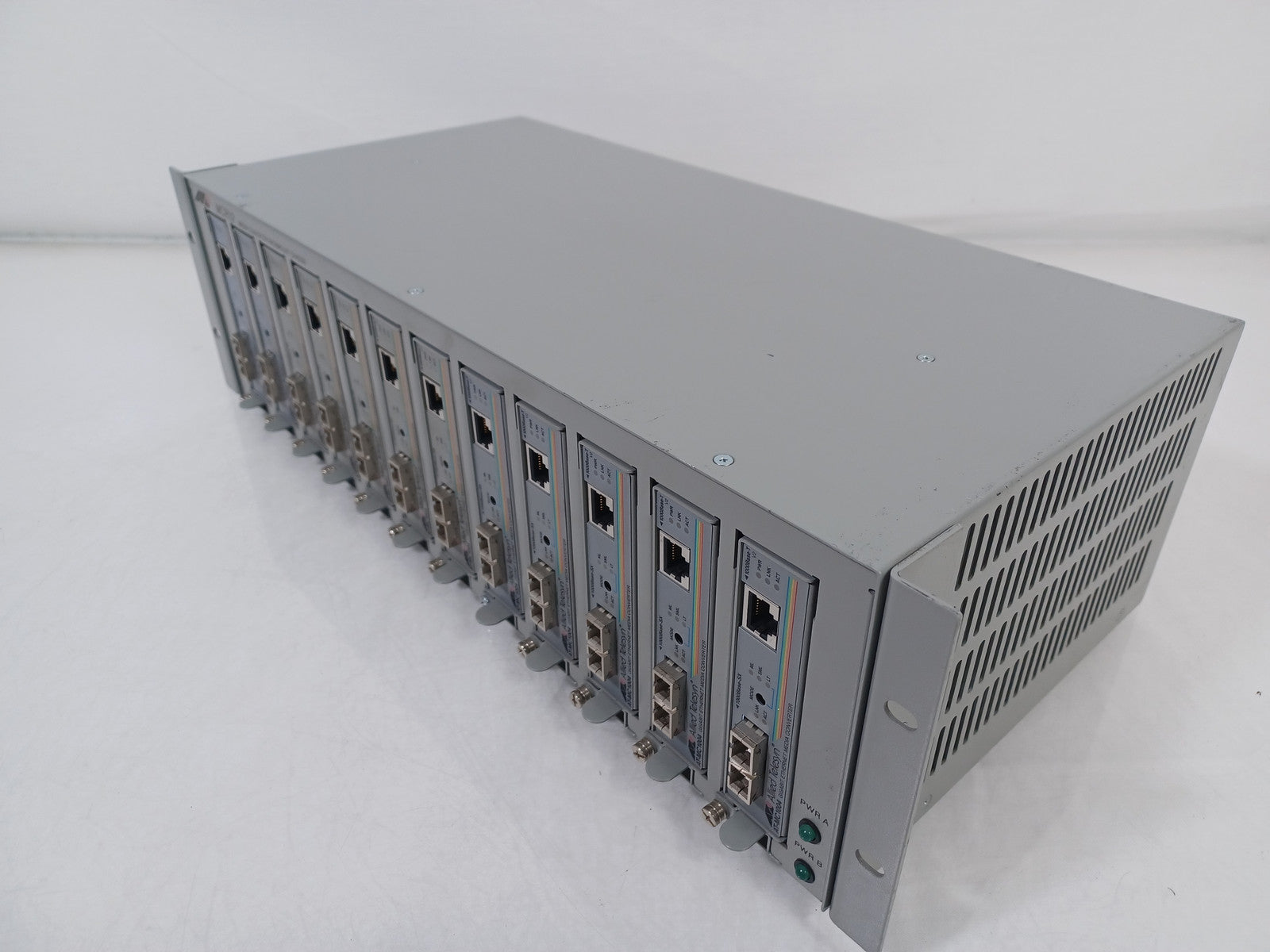

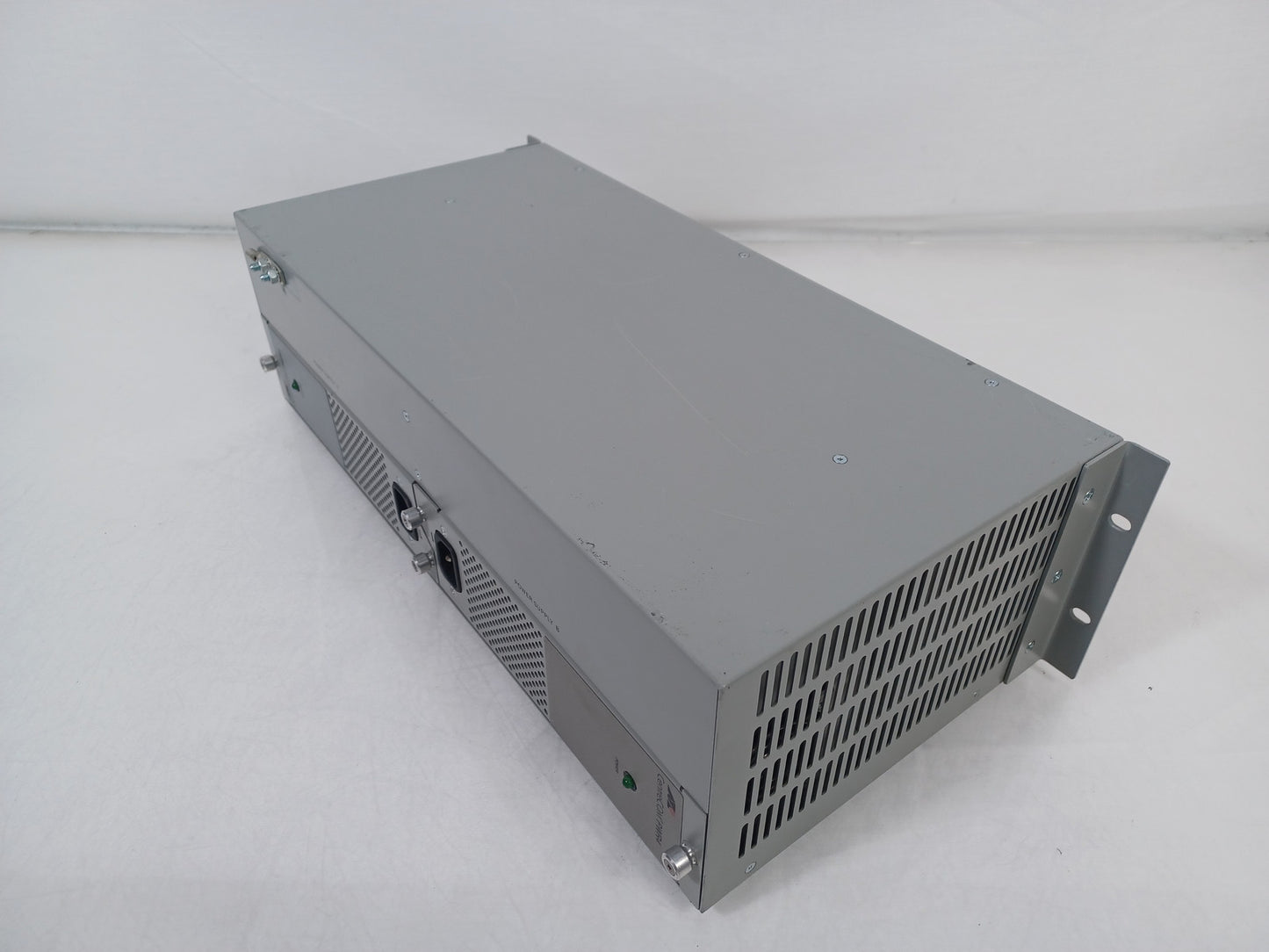

Allied Telesyn AT-MCR12 12 Slot Distribution Chassis - 12x AT-MC1004 Modules

Media Converter Flexibility

Supporting up to 12 Allied Telesis media converters, the AT-MCR12 enables network managers to use the MC1x family (10Mbps) or MC10x family (100Mbps) media converters in the same chassis.

Power Options

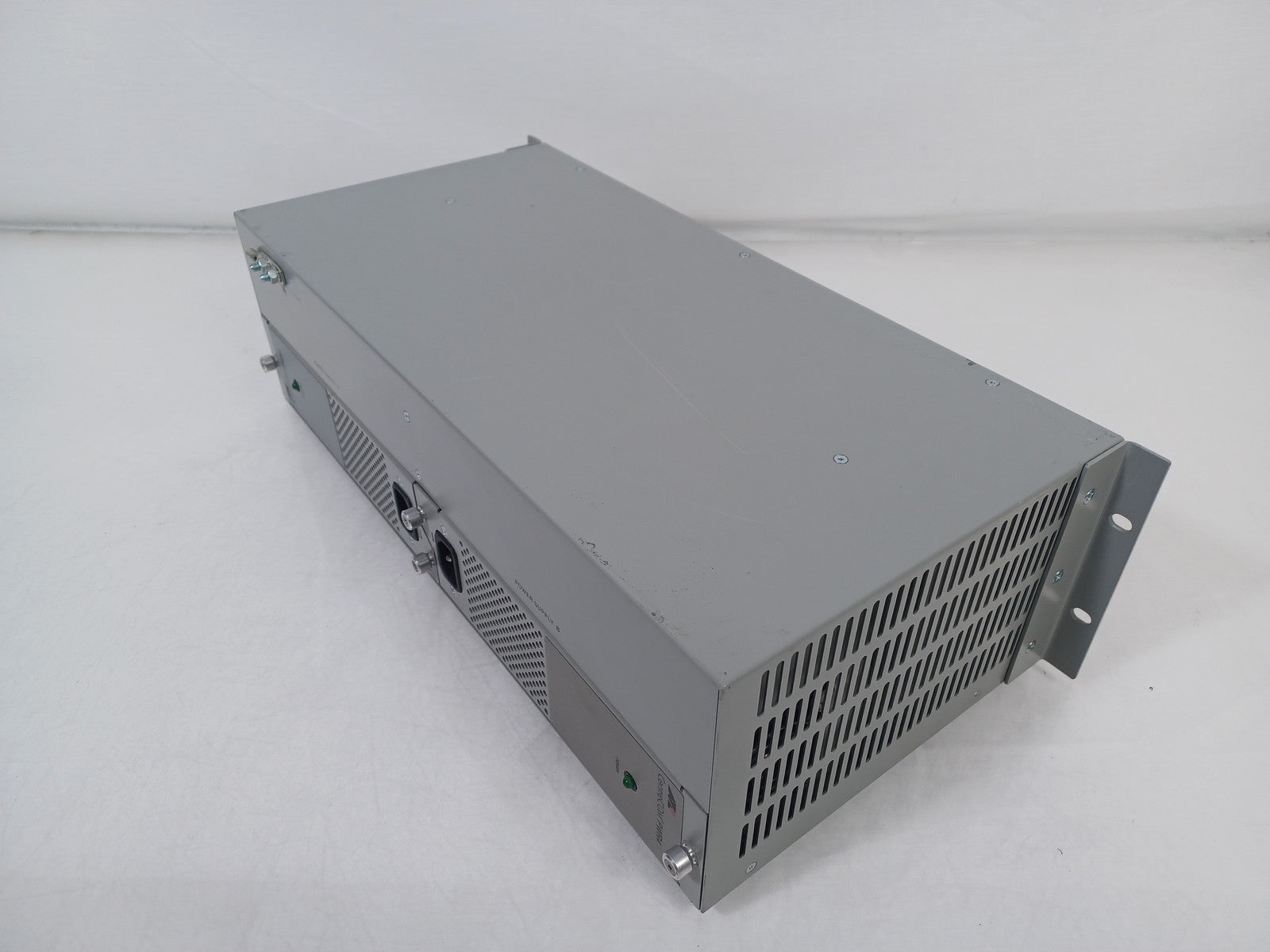

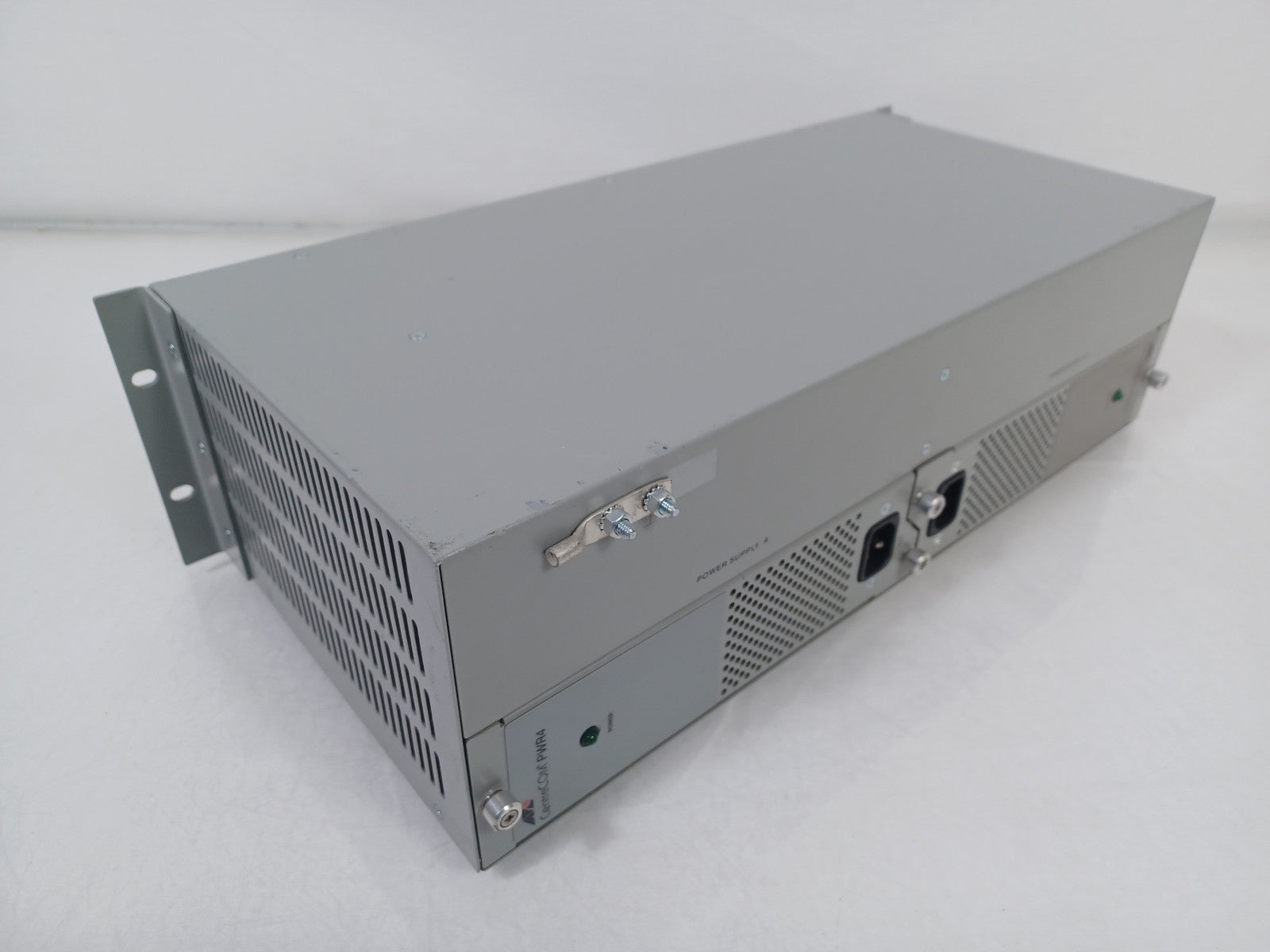

A single internal universal power supply powers the AT-MCR12, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot-swappable power supply to eliminate downtime on the network. The unit saves space in the wiring closet and minimizes the number of power connections required. Single-unit media converters can be removed from the AT-MCR12 and deployed individually in order to accommodate network modifications. By incorporating a backplane with 12 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters whether using one or two power supplies.

Rack-mount Design

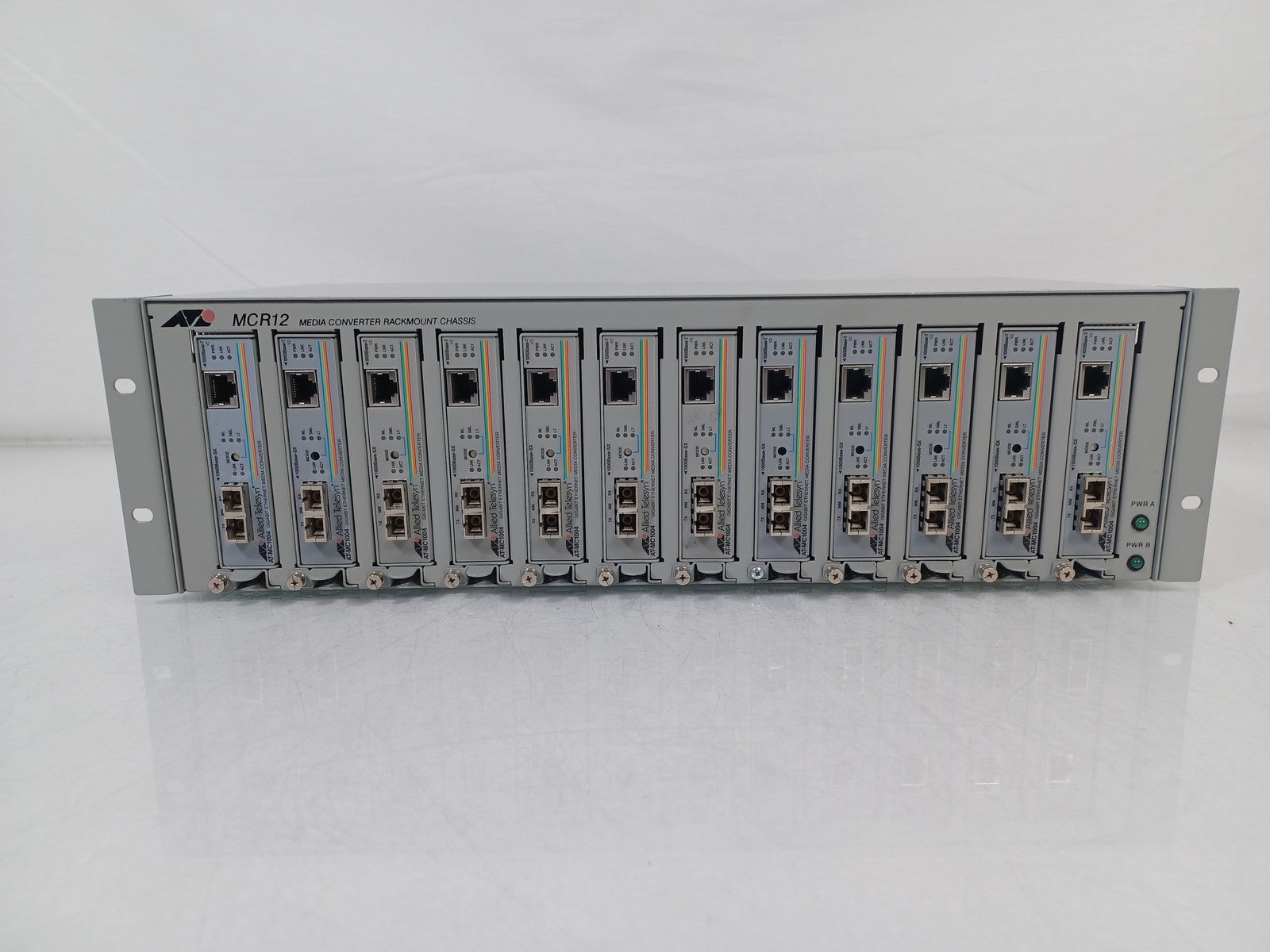

Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail. The rack-mount chassis includes two status LEDs on the front panel indicating power status. The top LED is titled PWR A and the bottom PWR B. The back panel has one LED for power. When a redundant power supply is installed, a second LED is visible.

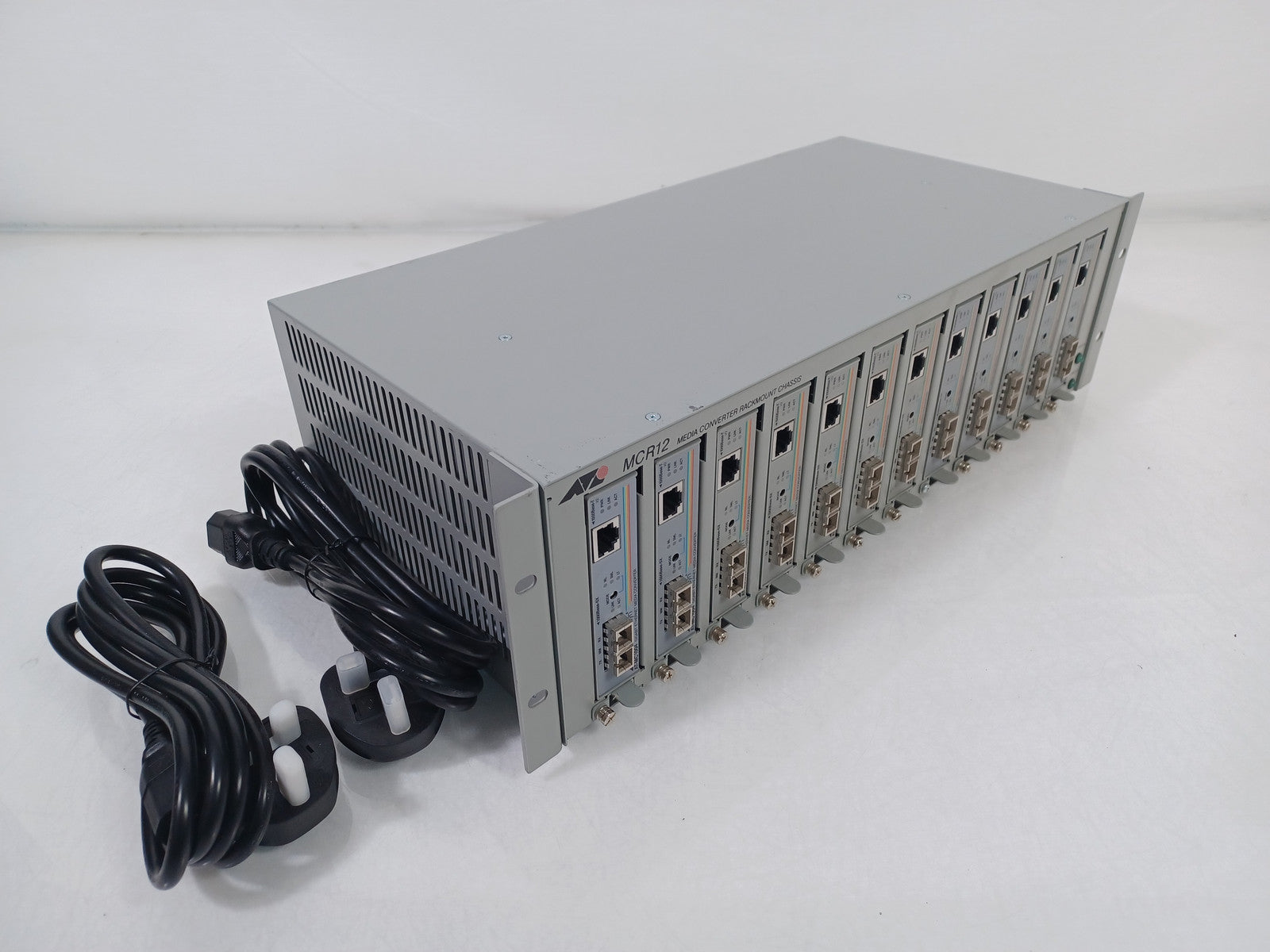

The AT-MCR12 is configured with one of the following power cords to meet regional requirements for North America, Continental Europe, or the United Kingdom.

The AT-MC1004 Gigabit Ethernet Media Converters

are designed to extend the distance of your network by converting Gigabit

Ethernet data between twisted pair cabling and either multimode or singlemode fiber optic cabling.

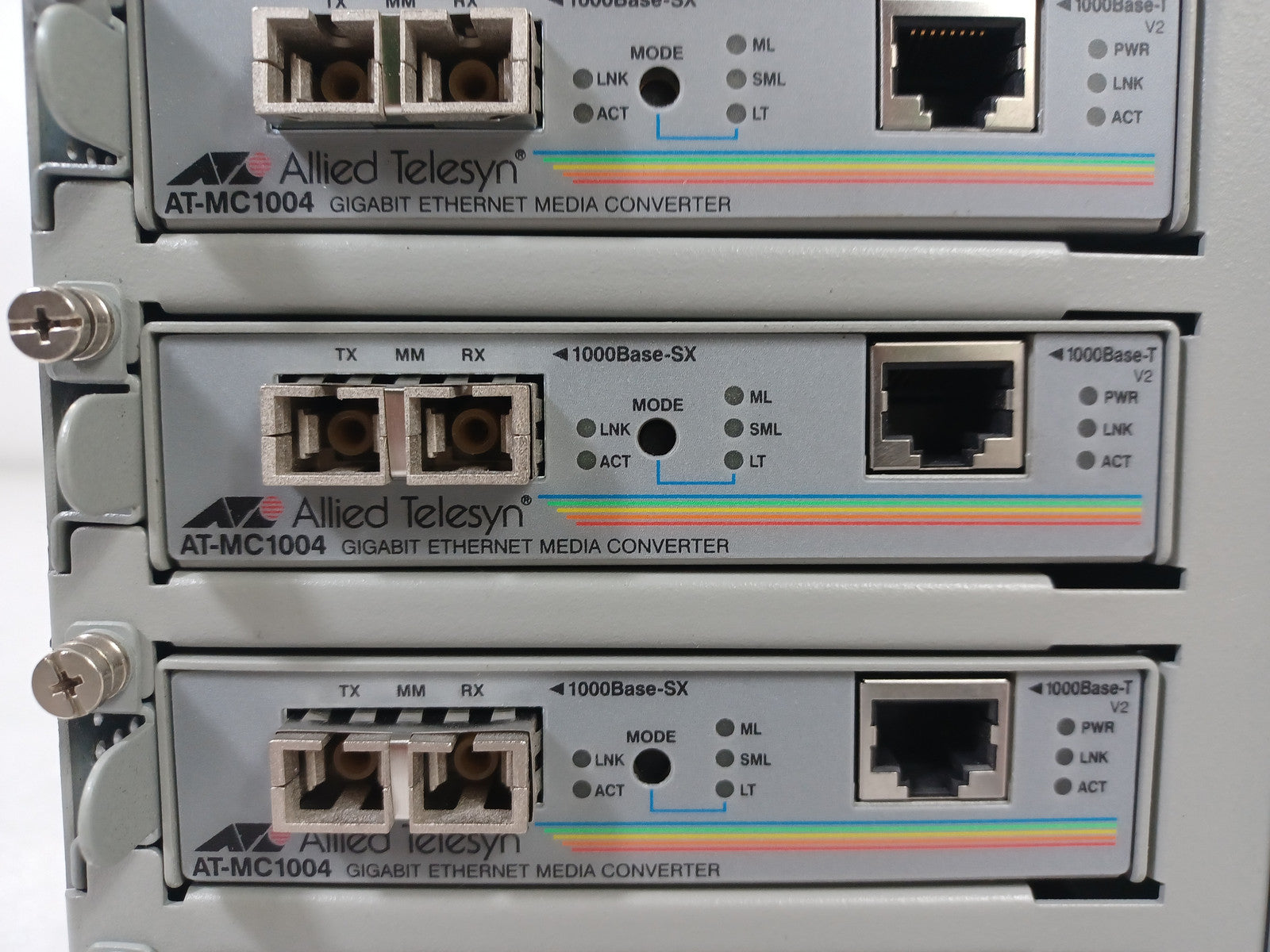

The AT-MC1004 media converter features a 1000Base-SX fiber optic port and

a 1000Base-T twisted pair port. The fiber optic port has an SC connector and a

maximum operating distance of 550 meters (1,804 feet). The twisted pair port

has an RJ-45 connector and a maximum operating distance of 100 meters
