Philips 86BDL3511Q 86" IPS 4K Ultra HD LCD Q-Line Digital Signage Display
Philips 86BDL3511Q 86" IPS 4K Ultra HD LCD Q-Line Digital Signage Display
Regular price
£799.99 GBP
Regular price
Sale price
£799.99 GBP
Taxes included.

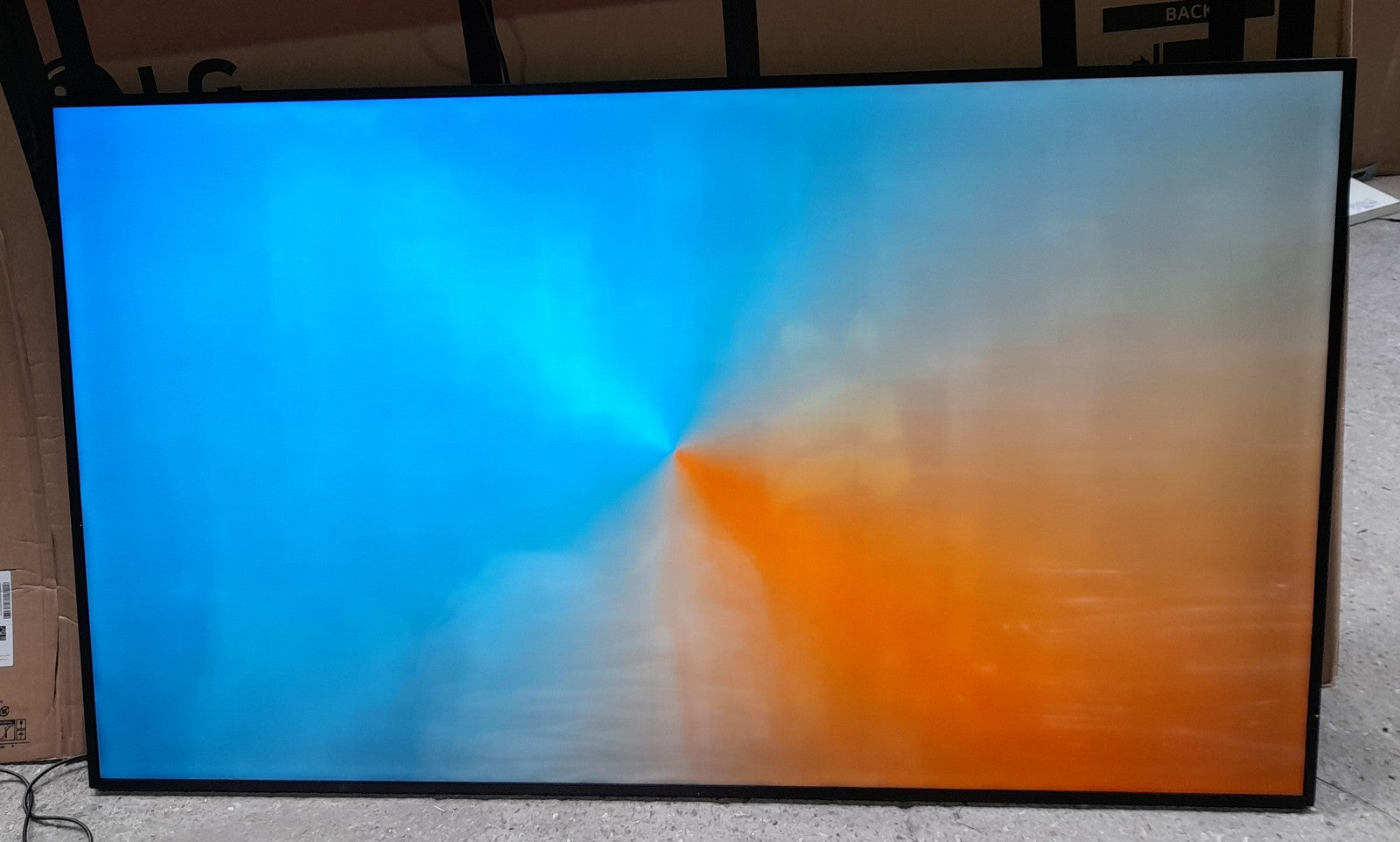

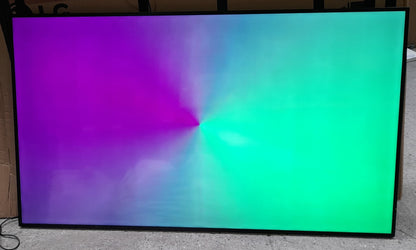

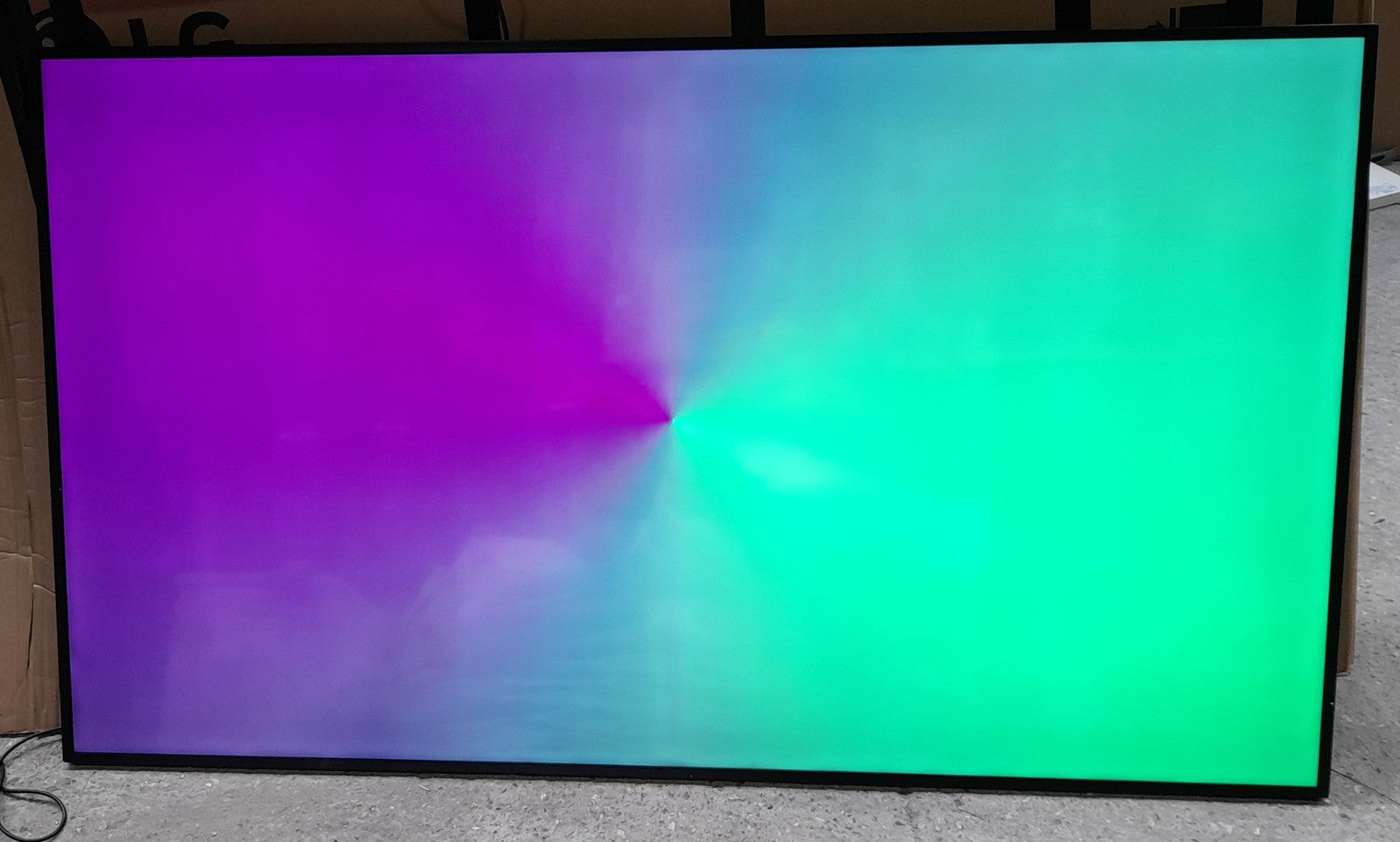

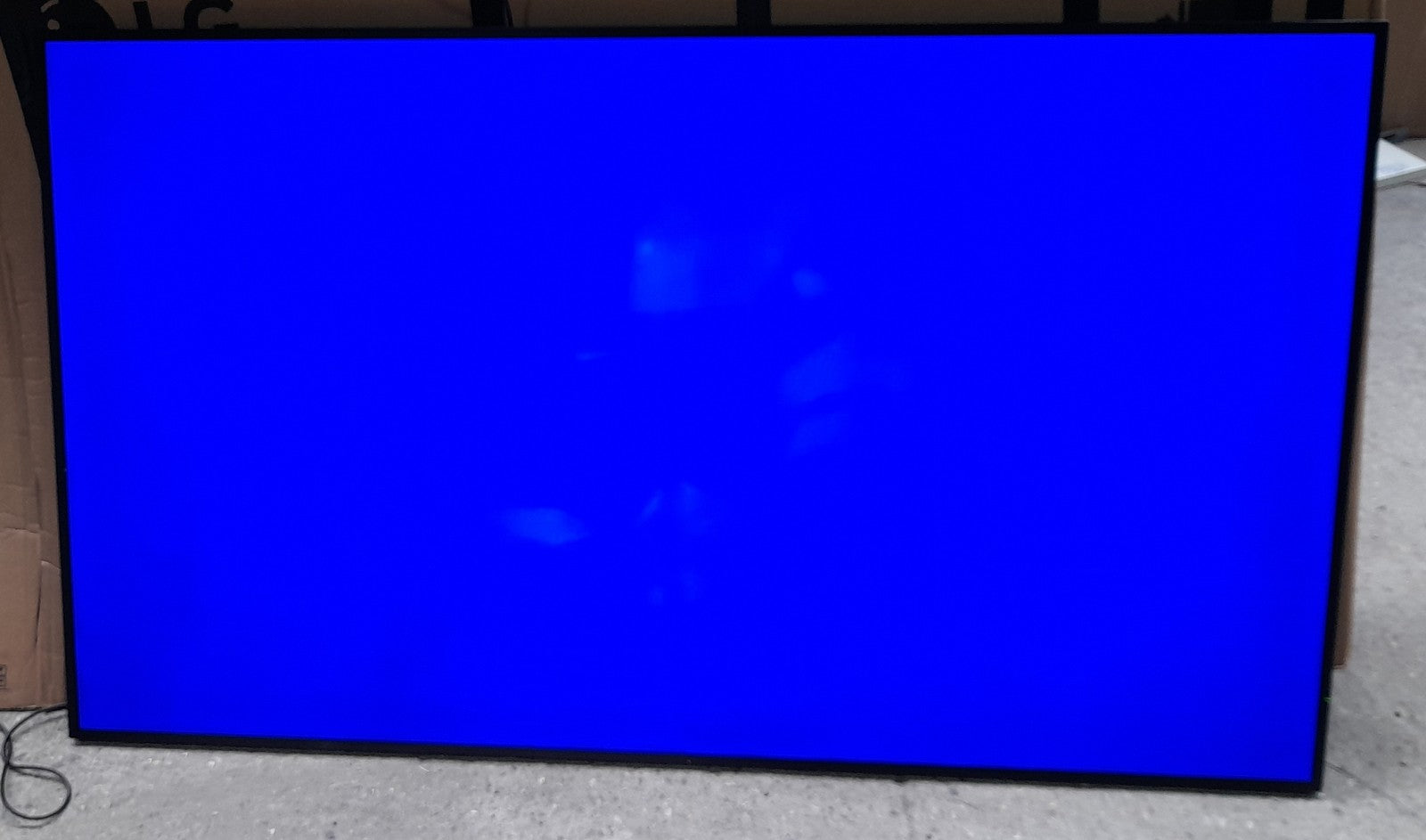

Philips 86BDL3511Q 86" IPS 4K Ultra HD LCD Q-Line Digital Signage Display has been fully tested and is in good working condition.
Cosmetically this unit has some minor marks and scratches but is in overall good condition.
The Philips 86BDL3511Q is an 86-inch, 4K UHD Q-Line professional display designed for digital signage applications. It features a 16:9 aspect ratio, IPS panel technology, and 400 cd/m² brightness.
The display offers 18/7 operation, integrated speakers, and a range of connectivity options including HDMI, DVI-I, and OPS. It also includes features like FailOver, SmartPlayer, and CMND & Control for enhanced functionality and management.
The display offers 18/7 operation, integrated speakers, and a range of connectivity options including HDMI, DVI-I, and OPS. It also includes features like FailOver, SmartPlayer, and CMND & Control for enhanced functionality and management.
Technical Specifications
-
Picture/Display
- Diagonal screen size (metric)
- 217.4 cm
- Diagonal screen size (inch)
- 85.6 inch
- Aspect ratio
- 16:9
- Panel resolution
- 3840 x 2160
- Pixel pitch
- 0.4935 x 0.4935 mm
- Optimum resolution
- 3840 x 2160 @ 60 Hz
- Brightness
- 400 cd/m²
- Display colours
- 1.07 Billion
- Contrast ratio (typical)
- 1200:1
- Dynamic contrast ratio
- 500,000:1
- Response time (typical)
- 8 ms
- Viewing angle (horizontal)
- 178 degree
- Viewing angle (vertical)
- 178 degree
- Panel technology
- IPS
- Clinical image
- D-Image preset (dicom part 14 compatible)
- Haze
- 25%
-

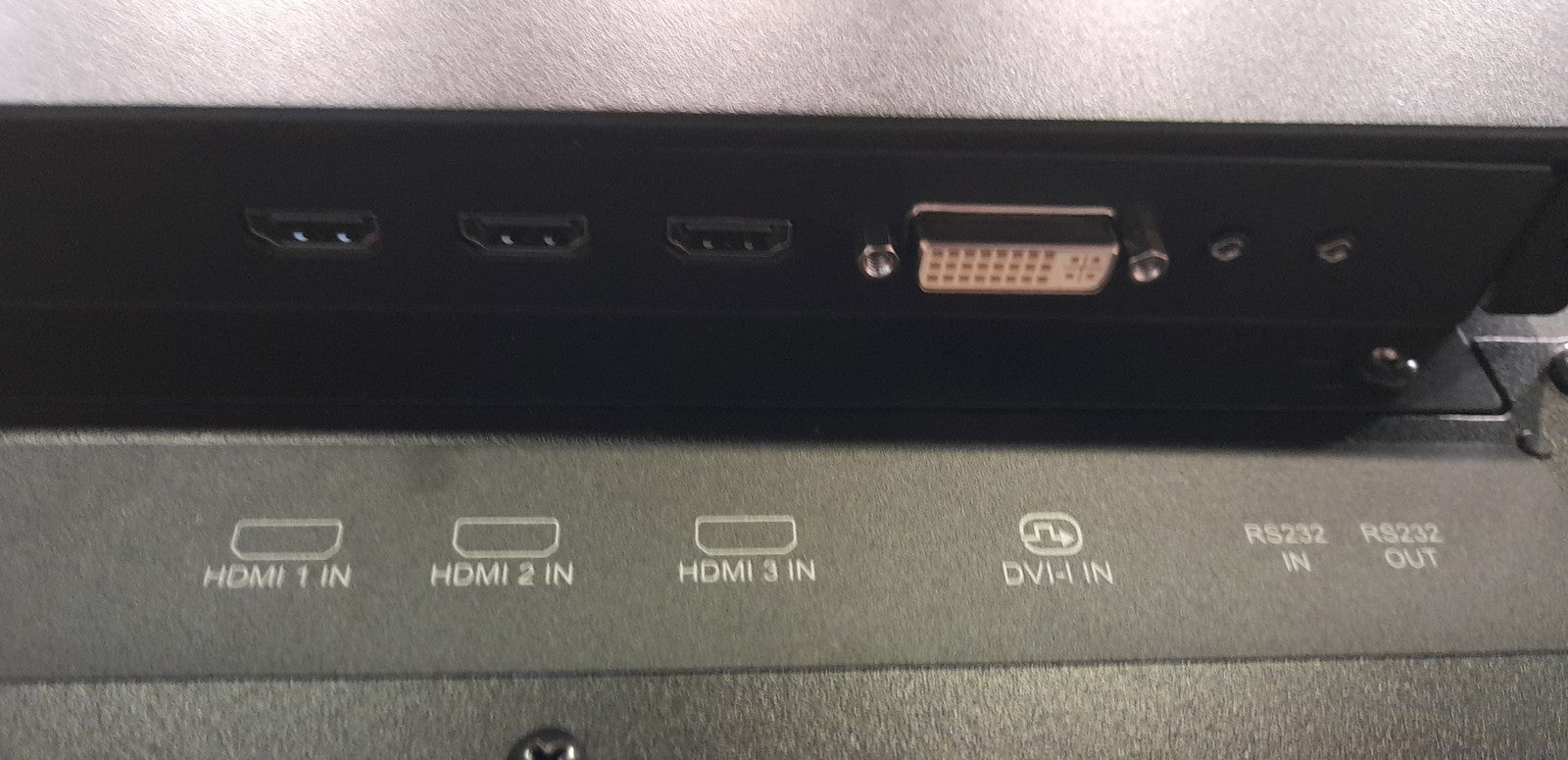

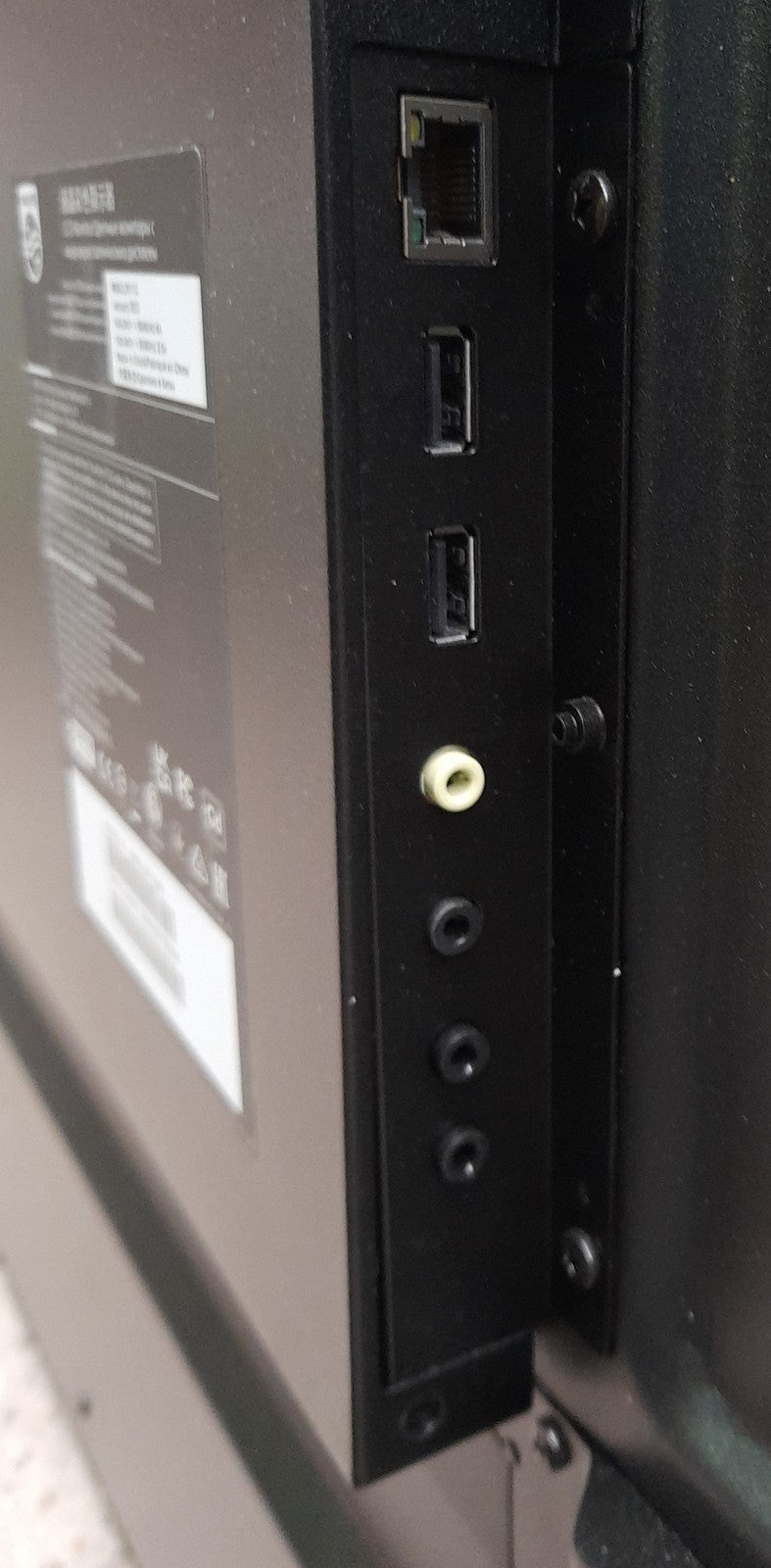

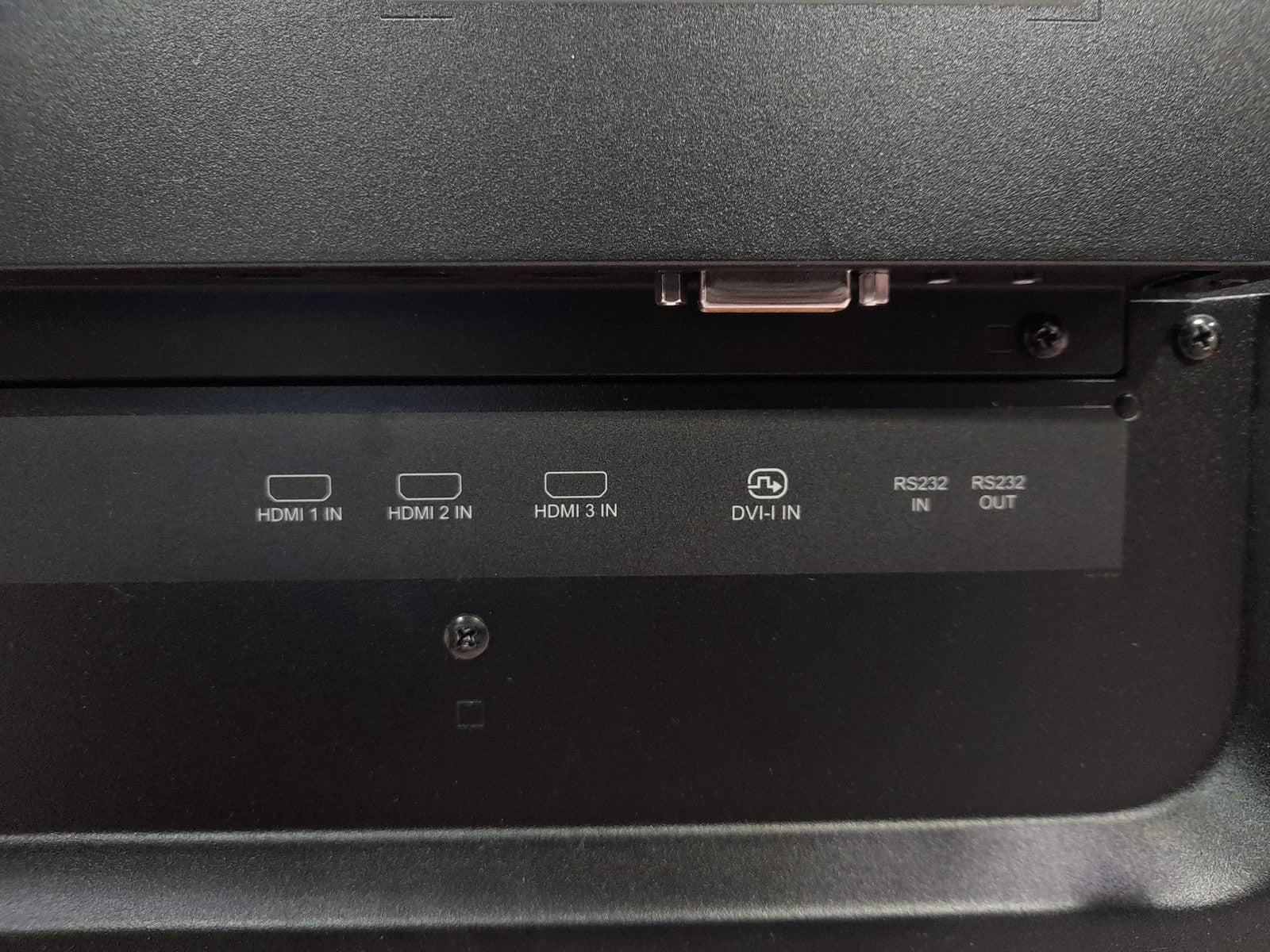

Connectivity
- Audio output
- 3.5 mm jack
- Video input
- DVI-I (x 1)
- HDMI 2.0 (x 3)
- USB 2.0 (x 2)
- Audio input
- 3.5 mm jack
- Other connections
- OPS
- External control
- IR (in/out) 3.5 mm jack
- RJ45
- RS232C (in/out) 2.5 mm jack
-
Convenience
- Placement
- Landscape (18/7)
- Portrait (18/7)
- Tiled Matrix
- Up to 10 x 15
- Keyboard control
- Hidden
- Lockable
- Remote control signal
- Lockable
- Signal loop through
- RS232
- IR Loop through
- Ease of installation
- Smart Insert
- Energy-saving functions
- Smart Power
- Network controllable
- RS232
- RJ45
- Start-up
- Switch on delay
- Switch on status
- Boot on source
- Start-up window
- enable/disable Philips logo
-
Sound
- Built-in speakers
- 2 x 10 W RMS
-

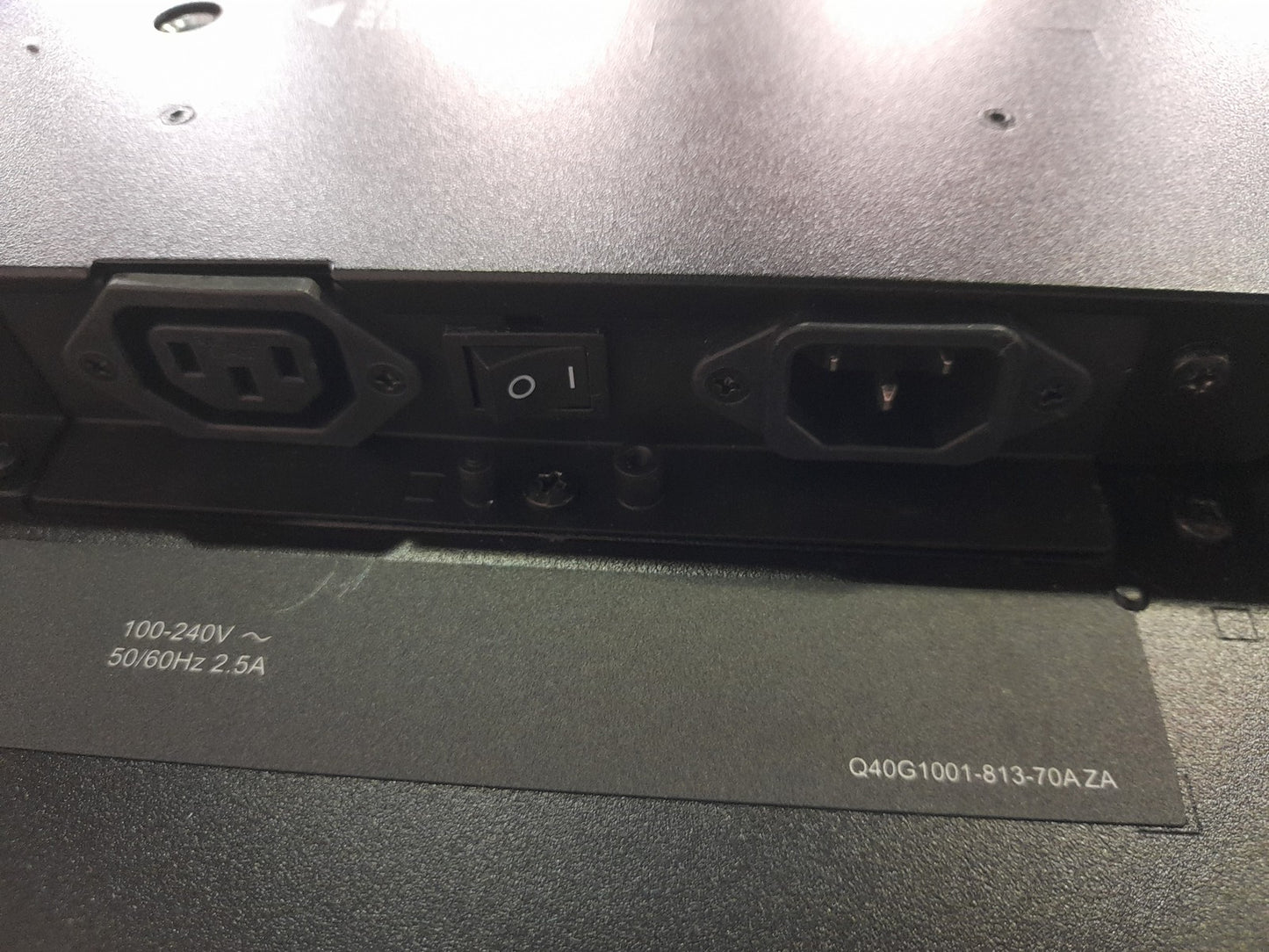

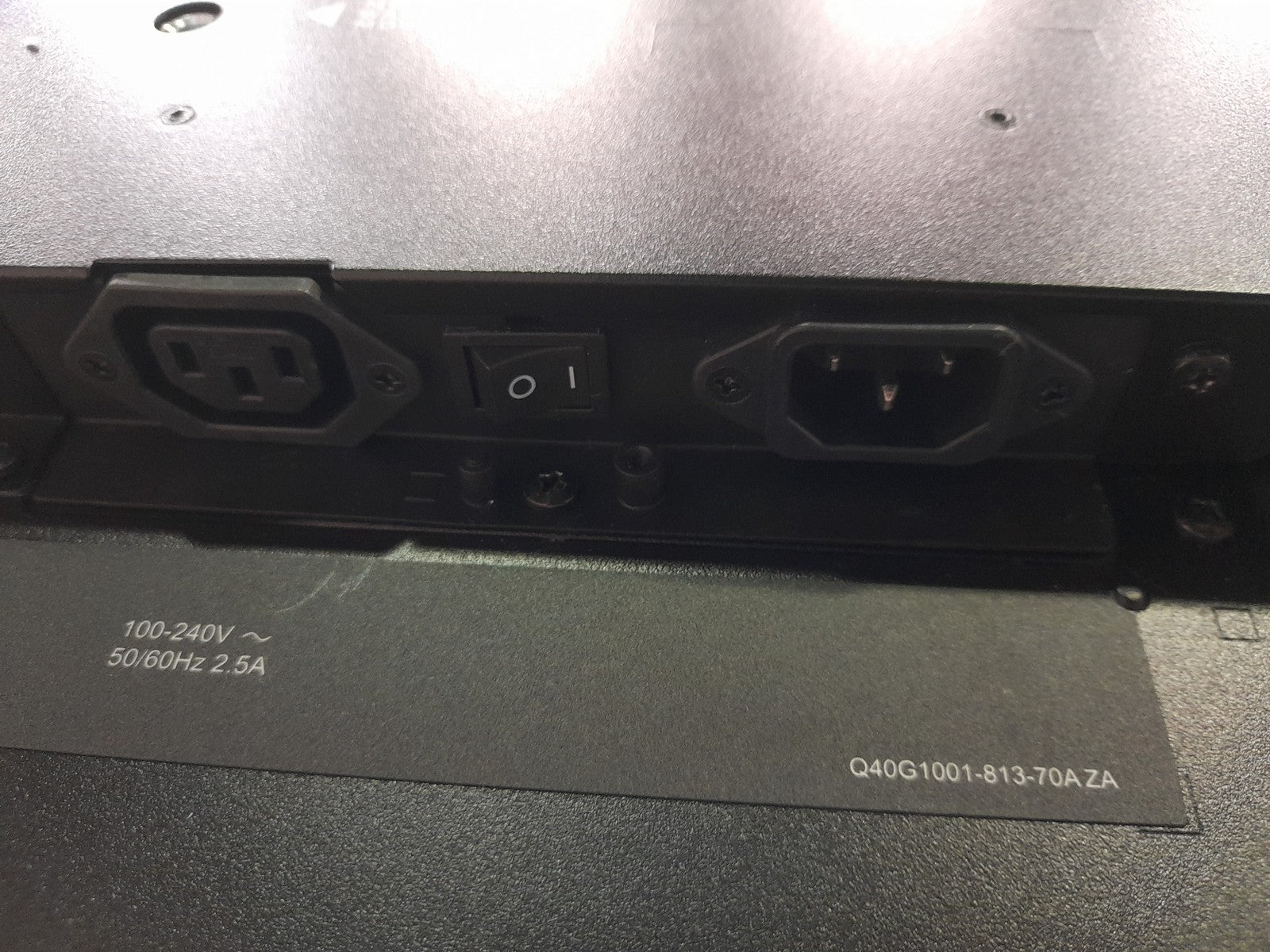

Power
- Mains power
- 100–240 V~, 50/60 Hz
- Consumption (Typical)
- 360 W
- Consumption (Max)
- 500 W
- Standby power consumption
- <0.5 W
- Power Saving Features
- Smart Power
- Energy Label Class
- G
-
Supported Display Resolution
- Computer formats
- 640 x 480, 60, 67, 72, 75 Hz
- 720 x 400, 70 Hz
- 800 x 600, 56, 60, 72, 75 Hz
- 832 x 624, 75 Hz
- 1024 x 768, 60, 70, 75 Hz
- 1152 x 864, 75 Hz
- 1152 x 870, 75 Hz
- 1280 x 720, 60 Hz
- 1280 x 800, 60 Hz
- 1280 x 1024, 60 Hz
- 1440 x 900, 60 Hz
- 1600 x 1200, 60 Hz
- 1680 x 1050, 60 Hz
- 1920 x 1080, 60 Hz
- Video formats
- 480i, 60 Hz
- 480p, 60 Hz
- 576p, 50 Hz
- 576i, 50 Hz
- 720p, 60 Hz
- 1080i, 50, 60 Hz
- 1080p, 50, 60 Hz
- 3840 x 2160, 30Hz
- 3840 x 2160, 60 Hz
-
Dimensions
- Set Width
- 1929.0 mm
- Product weight
- 49.5 kg
- Set Height
- 1100.0 mm
- Set Depth
- 69.5 mm(D@wall mount)/91.8 mm(D@handle) mm
- Set Width (inch)
- 75.94 inch
- Set Height (inch)
- 43.31 inch

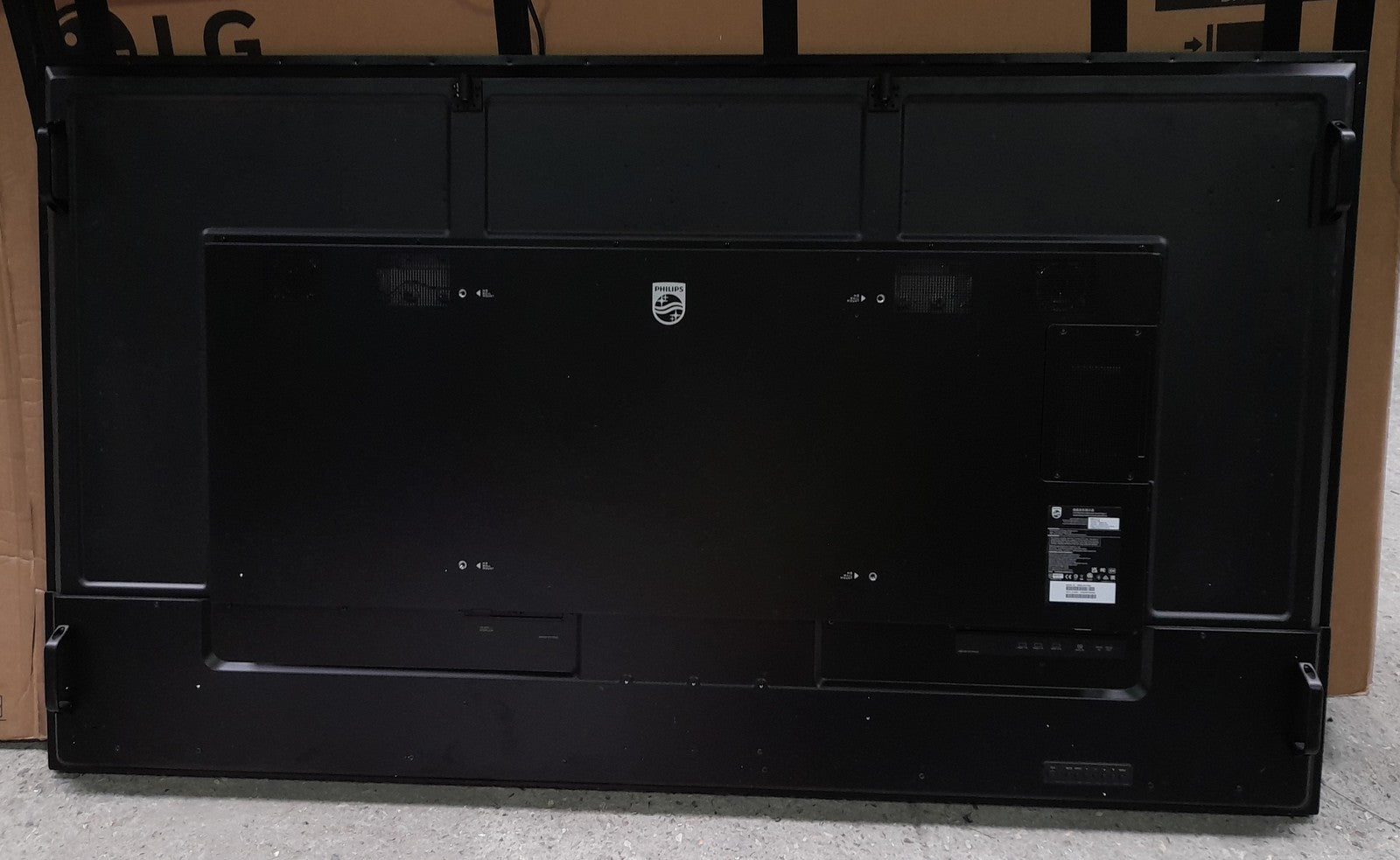

- Wall Mount
- 600 x 400 mm, M8
- Set Depth (inch)
- 2.74(@ wall mount)/3.61(@ handle) inch
- Bezel width
- 15.5 mm (Even bezel)
- Product weight (lb)
- 109.13 lb
-
Operating conditions
- Altitude
- 0 ~ 3000 m
- Temperature range (operation)
- 0 ~ 40 °C
- MTBF
- 50,000 hour(s)
- Temperature range (storage)
- -20 ~ 60 °C
- Humidity range (operation)[RH]
- 20~80% RH (No condensation)
- Humidity range (storage) [RH]
- 5~95% RH (No condensation)
-
Multimedia Applications
- USB Playback Video
- H.264
- JPEG
- MPEG
- WMV3
- USB Playback Picture
- BMP
- JPEG
- PNG
- USB Playback Audio
- AAC
- WMA
- MPEG
- HEAAC
