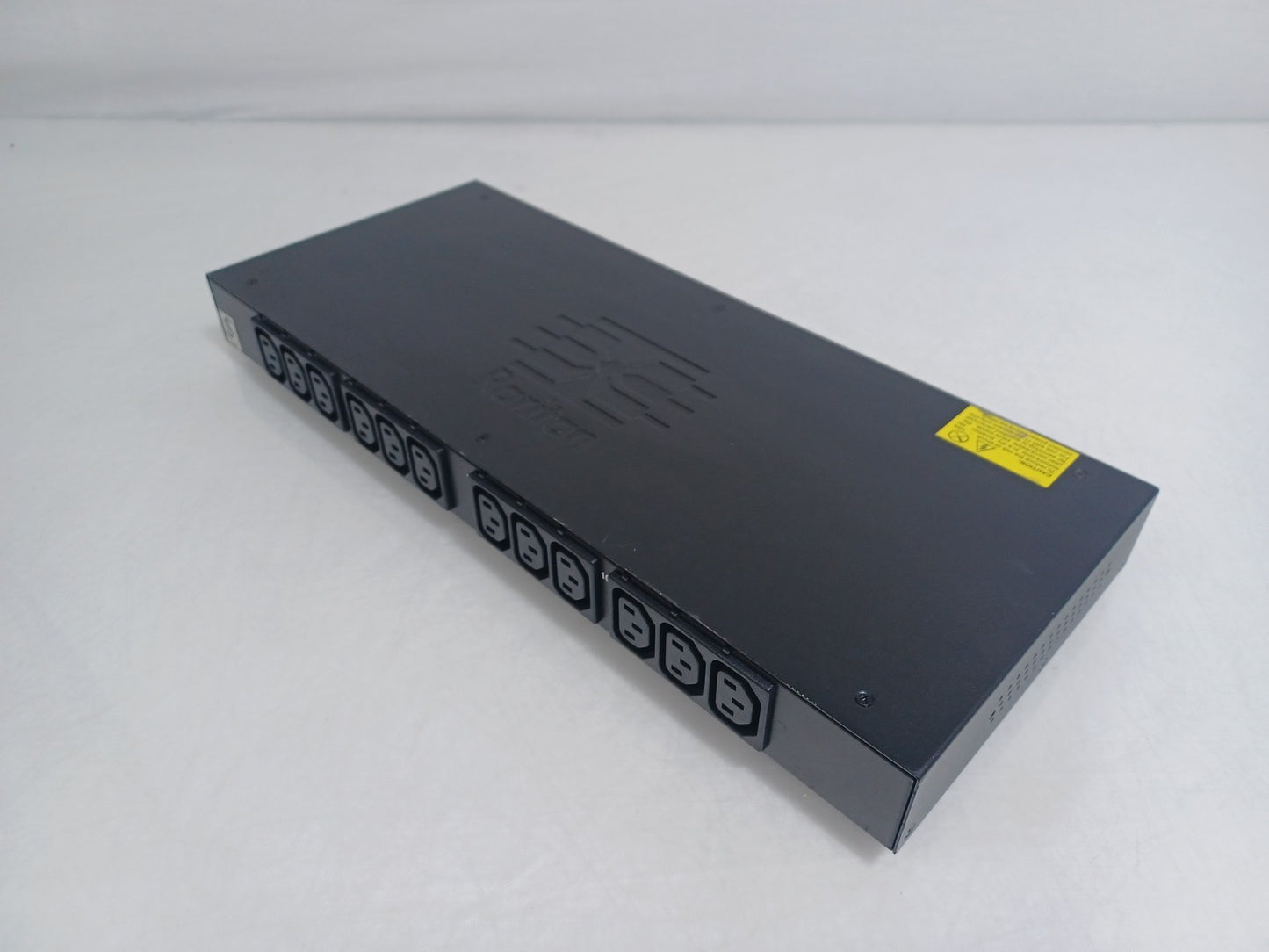

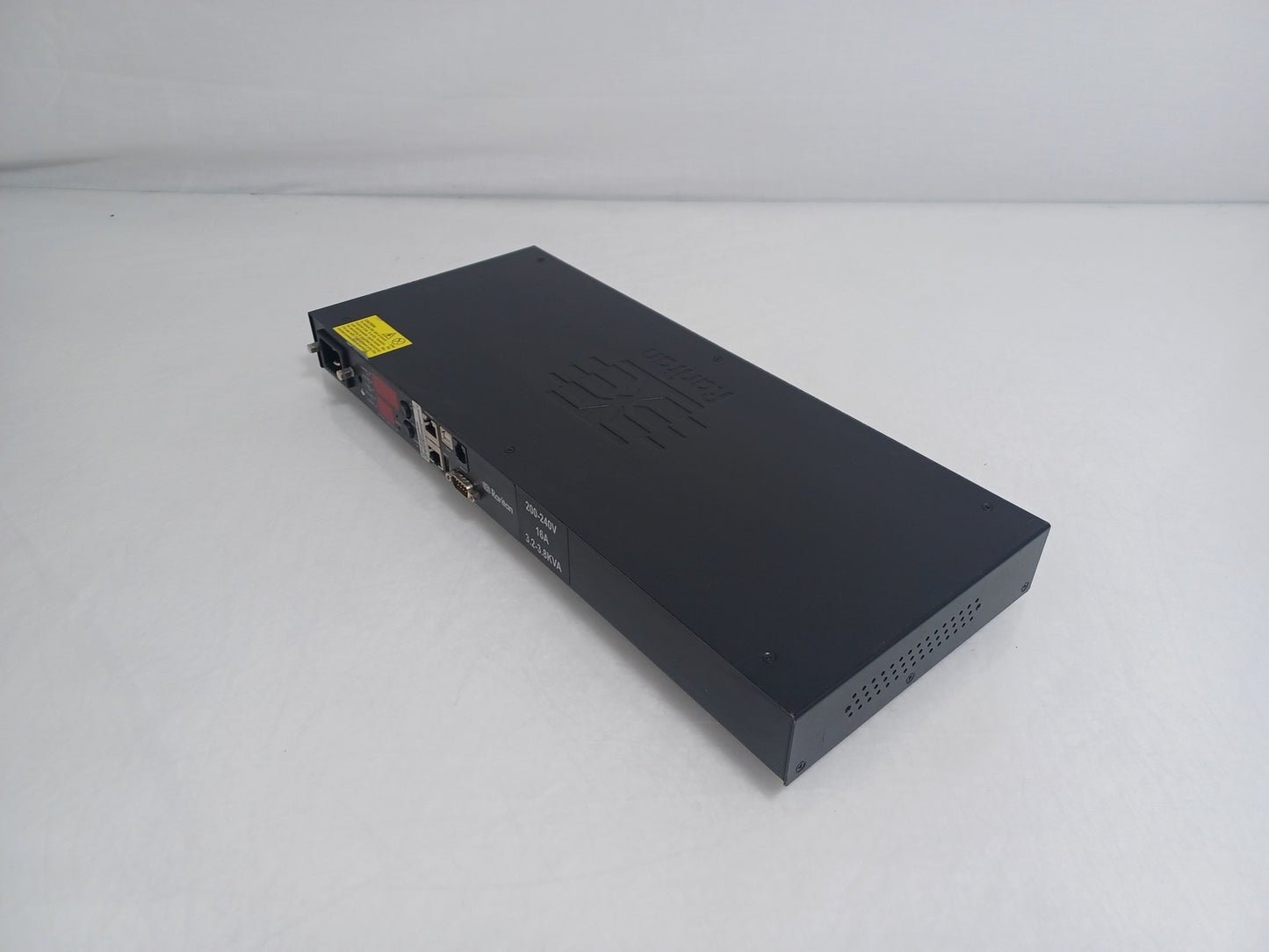

Raritan PX2-5260R 1U 12 Port Power Distribution Unit

Features

Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power

Factor

Metering Accuracy ISO/IEC 62053-21 1%

Metering per Input Line Yes

Metering per Branch Circuit Breaker Yes

Metering per Output Receptacle Yes

Remote Outlet Switching Yes

Environmental Sensor Ready Yes

Networking 10/100 BaseT Ethernet. Optional WiFi (802.11a/b/g/n)

Remote Management HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC

Cascading Yes

up to (4) PDUs in a single cabinet can share a single Ethernet connection

Onboard Display

3-digit user-selectable display (can be selected between Manual and Auto Display

Mode).

Can display Line voltage, Line current, CB Current (if IPDU supports CB), Unit active

power, Outlet Voltage, Outlet Current, and Outlet Active power

Compatible Sensors

Temperature, Humidity, Air Flow, Static Pressure

Single cable connection provides temp/humidity monitoring

at three points in cabinet (with a single sensor assembly)
